{frogfoot} Ganti Seal Oli Transmisi - As Roda Aerio karena rembes
sumber : kaskus
Rembes oli transmisi di cv joint yg kiri.
by frogfoot
gambar 1 - rembes oli transmisi
Rembes oli transmisi di cv joint yg kiri.

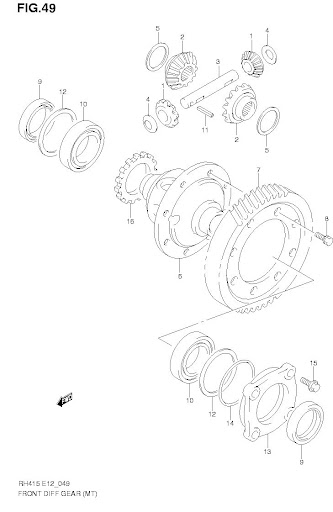

gambar 2 - Diagram Diferential oli transmisi manual
No. | Number | Qty | Description | Complete No. | List Price |
1 | 27331-70C00 | 2 | PINION, DIFFERENTIAL | 27331-70C00-000 | Rp. 242.200 |
2 | 27341-70C01 | 2 | GEAR, DIFFERENTIAL SIDE | 27341-70C01-000 | Rp. 325.100 |
3 | 27351-70C01 | 1 | SHAFT, DIFF SIDE PINION | 27351-70C01-000 | Rp. 111.700 |
4 | 09164-17006 | 2 | WASHER | 09164-17006-000 | Rp. 12.700 |
5-1 | 09181-38163 | 2 | SHIM (T:0.85) | 09181-38163-000 | Rp. 13.700 |
5-2 | 09181-38164 | 2 | SHIM (T:0.90) | 09181-38164-000 | Rp. 13.600 |
5-3 | 09181-38165 | 2 | SHIM (T:0.95) | 09181-38165-000 | Rp. 13.600 |
5-4 | 09181-38166 | 2 | SHIM (T:1.00) | 09181-38166-000 | Rp. 16.600 |
5-5 | 09181-38169 | 2 | SHIM (T:1.05) | 09181-38169-000 | Rp. 16.600 |
5-6 | 09181-38172 | 2 | SHIM (T:1.10) | 09181-38172-000 | Rp. 16.600 |
5-7 | 09181-38174 | 2 | SHIM (T:1.15) | 09181-38174-000 | Rp. 16.600 |
6 | 27411-54G40 | 1 | CASE, DIFFERENTIAL | 27411-54G40-000 | Rp. 715.300 |
7 | 27511-71C40 | 1 | GEAR, FINAL | 27511-71C40-000 | Rp. 1.023.000 |
8 | 09103-10189 | 8 | BOLT (10X23) | 09103-10189-000 | Rp. 14.200 |
9 | 27432-70C00 | 2 | SEAL, DIFFERENTIAL SIDE OIL | 27432-70C00-000 | Rp. 45.100 |
10 | 09265-38001 | 2 | BEARING ASSY (38X63X17) | 09265-38001-000 | Rp. 298.900 |
11 | 09205-05007 | 1 | SPRING PIN (5X36) | 09205-05007-000 | Rp. 5.400 |
12-1 | 29541-74C00 | 1 | SHIM, SIDE BEARING (T:0.60) | 29541-74C00-000 | Rp. 41.500 |
12-2 | 29541-74C20 | 1 | SHIM, SIDE BEARING (T:0.66) | 29541-74C20-000 | Rp. 41.500 |
12-3 | 29541-74C40 | 1 | SHIM, SIDE BEARING (T:0.72) | 29541-74C40-000 | Rp. 41.500 |
12-4 | 29541-74C60 | 1 | SHIM, SIDE BEARING (T:0.78) | 29541-74C60-000 | Rp. 41.500 |
12-5 | 29541-74C80 | 1 | SHIM, SIDE BEARING (T0.84) | 29541-74C80-000 | Rp. 41.500 |
12-6 | 29541-75C00 | 1 | SHIM, SIDE BEARING (T0.30) | 29541-75C00-000 | Rp. 41.500 |
13 | 27421-70C00 | 1 | RETAINER, DIFF SIDE BEARING | 27421-70C00-000 | Rp. 205.900 |
14 | 09280-58005 | 1 | O RING | 09280-58005-000 | Rp. 12.000 |
15 | 01550-08203 | 4 | BOLT | 01550-08203-000 | Rp. 8.000 |
16 | 26121-54G40 | 1 | RING, EXCITER | 26121-54G40-000 | Rp. 110.500 |
tabel 1 - Part no 9 yang harus diganti
gambar 3 - Kondisi Inner CV Joint Kiri
mobil sudah ane ambil, sil inner joint kena 65 rb (lebih mahal dari daftarnya om singa) sama kena ongkos bongkar pasang 50 rb. cuma kemaren tidak bisa foto sil nya karena ada kunjungan bos jadi nda bisa nungguin pengerjaannya
by frogfoot
